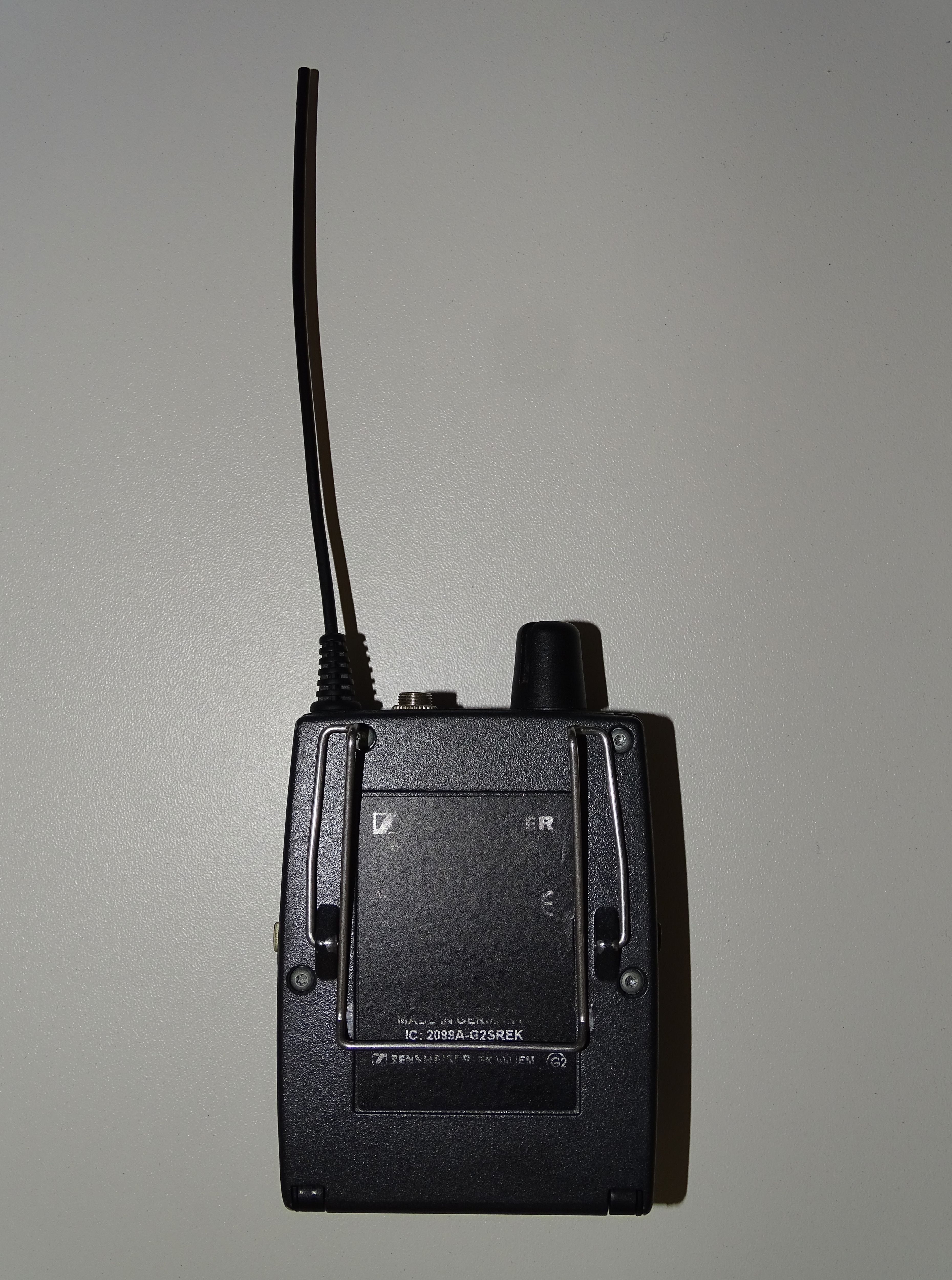

The ew 300 IEM G2 systems With the Sennheiser evolution wireless in-ear monitoring systems ew 300 IEM G2 (suitable for both stage and broadcast use), musicians, video and sound amateurs, reporters/broadcasters, etc. Can directly monitor the received sound signals without troublesome cables or monitor speakers being required. User guide. Read online or download PDF. Sennheiser EW 300 G2 User Manual. Sennheiser Microphones Manuals Directory ManualsDir.com - online owner manuals library Search. Free PDF downloads for Sennheiser ew 300 IEM G3 manuals at MicrophoneManuals.com Download free microphone PDF manuals for top brands. No accounts or sign ups necessary! The evolution wireless series ew 300 G2 With the evolution wireless series ew 300 G2, Sennheiser offers musicians, video and sound amateurs high-quality state-of-the-art RF transmission systems with a high level of operational reliability and ease of use. Transmitters and receivers permit wireless transmission with studio-quality sound.
SENNHEISER FREQUENZBLATT EW 300 G2 IEM 740-776 MHZ Owner's Manual. With this manual You'll learn how to set up and use Your SENNHEISER FREQUENZBLATT EW 300 G2 IEM 740-776 MHZ. The manual describes functions of FREQUENZBLATT EW 300 G2 IEM 740-776 MHZ, tells how to use it correctly and includes instructions on maintanance. The ew 300 IEM G2 system With the Sennheiser evolution wireless in-ear monitoring system ew 300 IEM G2 (suitable for both stage and broadcast use), musicians, video and sound amateurs, reporters/broadcasters, etc. Can directly monitor the received sound signals without troublesome cables or monitor speakers being required. Wireless monitoring system ew 300 IEM G2 The system is available in a 36 MHz UHF frequency range with a total of 1,440 transmission/receiving frequencies. The ew 300 IEM G2 transmitter and receiver have eight channel banks respectively. Each of the channels in the channel banks has been factory-preset to a frequency which cannot be changed.
Zusatzinformation für das Wireless Monitor
System der Serie ew 300 IEM G2
Für die Übertragung steht im UHF-Band ein 36-MHz-breiter
Frequenzbereich mit insgesamt 1440 Sende-/Empfangsfre-
quenzen zur Verfügung.
Die Sender und Empfänger verfügen über jeweils acht Kanal-
bänke, auf denen eine Frequenz unveränderbar voreingestellt
ist. Eine weitere Kanalbank (Bank „U“) dient zur individuellen
Einstellung von Frequenzen je Kanal in 25-kHz-Schritten.
Die voreingestellten Kanäle sind je Kanalbank mit Frequenzen
belegt, die im Mehrkanalbetrieb miteinander störungsfrei
arbeiten. Bei Mehrkanalbetrieb zusammen mit drahtlosen
Mikrofonsystemen sollten vorzugsweise unterschiedliche Fre-
quenzbereiche gewählt werden, um Störungen durch Misch-
frequenzen zu vermeiden. Sollte nur ein Frequenzbereich für
beide Systeme zur Verfügung stehen, setzen Sie sich bitte mit
Ihrem Sennheiser-Partner in Verbindung.
In der Kanalbank „U“ können Sie alle Frequenzen innerhalb
des Frequenzbereiches im 25-kHz-Raster einstellen. Dadurch
arbeiten die Sender/Empfänger möglicherweise auf Frequen-
zen, die im Einsatzgebiet nicht zugelassen sind.
Hinweis:
Bitte melden Sie Ihre Anlage bei der für Sie zuständigen
Behörde an, die über zugelassene Frequenzen für Draht-
los-Monitor-Systeme verfügt!
Der Frequenzbereich mit den jeweils voreingestellten Fre-
quenzen in den Kanälen „1“ bis „8“ ist in der Tabelle auf der
letzten Seite dargestellt.
Weiterhin sind folgende Werkseinstellungen vorgenommen
worden, die mit dem Menüpunkt
Reset
jederzeit wieder
abrufbar sind:
Bank
„1“ aktiv
Channel
„1“ aktiv
Bank „U“
Sennheiser Iem G2
Kanäle mit Frequenzen aus Bank „1“
Sensitivity
–8 dB
Squelch
Low
Display
Frequency
Name
Gerätename
Pilot (EK)
On (wird mit
Reset
nicht zurückgesetzt)
Stereo
On
Balance
Mid
Limiter
On
Lock
Off
Additional information on the evolution
wireless monitoring system ew 300 IEM G2
The system is available in a 36 MHz UHF frequency range with
a total of 1,440 transmission/receiving frequencies.
The ew 300 IEM G2 transmitter and receiver have eight
channel banks respectively. Each of the channels in the
channel banks has been factory-preset to a frequency which
cannot be changed by the user. An additional channel bank
(bank “U”) allows the user to store individual frequencies
which are freely selectable in 25-kHz steps.
Several monitoring systems can be operated simultaneously
on the different factory-preset frequencies within a channel
bank. The factory-preset frequencies are intermodulation-
free. When using ew 300 IEM G2 systems together with
wireless microphone systems, different frequency ranges
should be chosen in order to avoid intermodulation
interference. If only one frequency range is available for both
systems, please contact your local Sennheiser dealer.
Since the channel bank “U” allows the user to store
frequencies that are tuneable in 25-kHz steps within the
preset frequency range, it can be that the transmitters/
receivers operate on frequencies which are not approved for
use in the respective area.
Note:
It is the user‘s responsibility to ensure that local
regulations regarding the licencing of radio transmission
equipment are complied with and that their use of
wireless monitoring does not cause interference to other
radio users.
The table on the last page lists the frequency range with the
respective preset frequencies in the channel banks “1” to “8”.
The following factory-preset default settings for the ew 300
IEM G2 transmitter and receiver can be recalled any time via
the
Reset
menu:
Bank
“1” active
Channel
“1” active
Bank “U”
Channels with frequencies from Bank “1”
Sensitivity
–8 dB
Squelch
Low
Display
Frequency
Name
Name of transmitter/receiver
Pilot (EK)
On (will not be reset when selecting
the
Reset
menu)
Stereo
On
Balance
Mid position
Limiter
On
Lock
Off
786–822 MHz
